JXRC1

Mandrill

Mandrill  Specifications Operating size
( Length * Width * Height )  1905 x 1720 x 815 mm

Folded size   635 x 1340 x 815 mm Propeller size   56 inches Aircraft weight
(excluding payload)  49 Kg Payload  50 Kg/40 L
Maxinum weight 99 Kg Recommended flight time
( Full loaded ) 7 minutes Maximum horizontal speed 10 m/s Maximum vertical speed 3 m/s Operating temperature -20℃~50℃ Wind resistance rating Level 6 Tilting angle 15° Operating mode Manual mode, Automatic mode Operating voltage 75.6 V Battery Type Li-Po Maximum flight altitude 3000 meters Battery capacity 30000mAh

Jaguar

JAGUAR Specifications Operating size
( Length * Width * Height )
1350 x 1350 x 280 mm
Wheelbase 945 mm Propeller size 22 inches Aircraft weight 2650g Payload 1850g Maxinum weight 4500 grams Flighting time (outdoor hovering ) 70 minutes Maximum horizontal flight speed 15 m/s Maximum vertical flight speed 3 m/s Operating temperature -20℃~50℃ Wind resistance rating Level 5 Tilting angle 25° Operating mode Mission mode, Altitude hold mode, GPS mode, landing mode Operating voltage 25.2 V Battery Type Li-Po Battery capacity 20000 mAh

Kangaroo

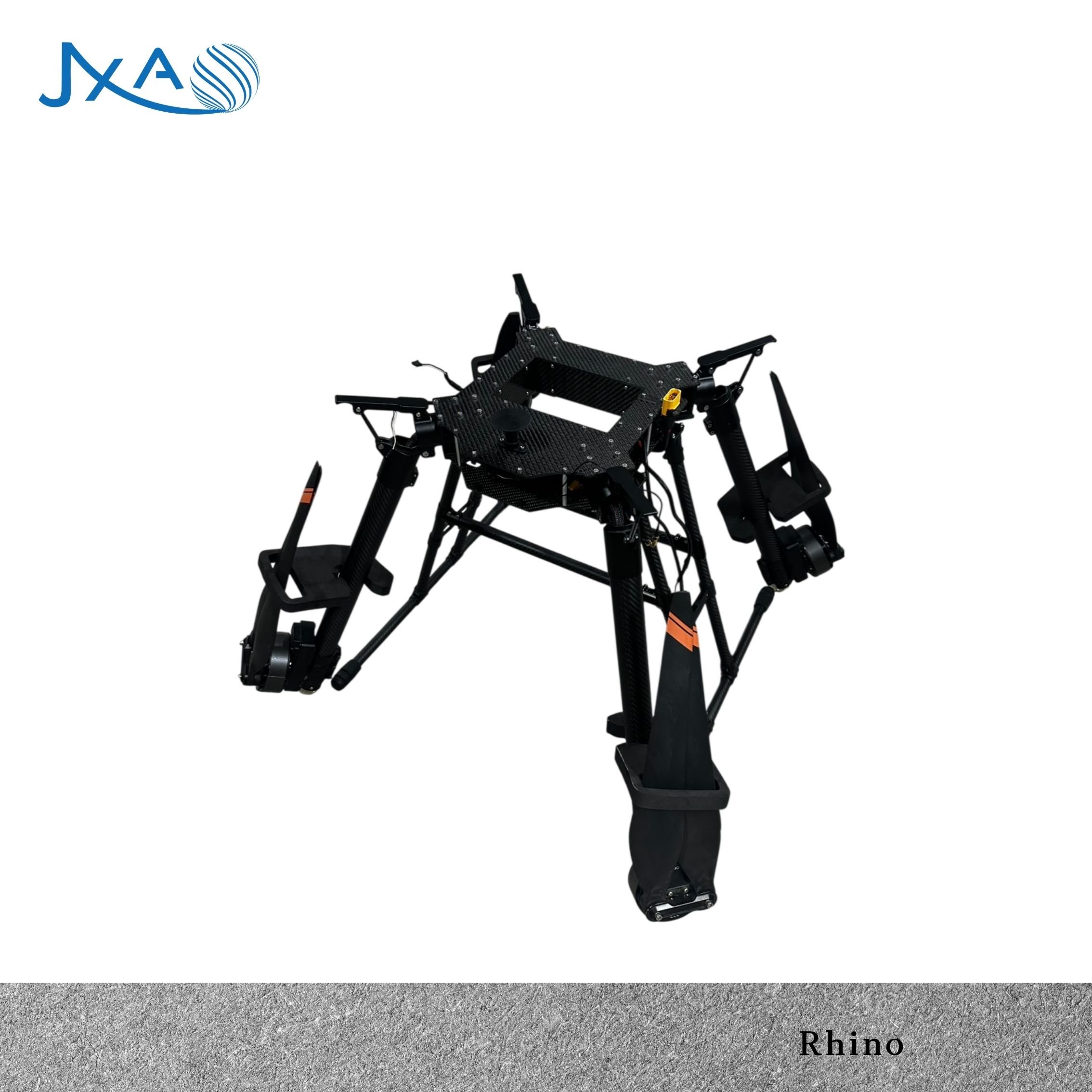

Rhino

Rhino    Specifications Operating size
(Length * Width * Height) 1900 x 1900 x 660 mm Folded size 1000 x 1000 x 660 mm Wheelbase 1400 mm Propeller size 36 inches Aircraft weight 19 Kg Payload 22 Kg Maximum weight 41 Kg Flight time (outdorr hovering) 10 minutes Waterproof rating IP45 Maximum horizontal flight speed 10 m/s Maximum vertical flight speed 3 m/s Operating ambient temperature -20 ℃ ~50 ℃ Wind resistance rating Level 5 Tilting angle 15° Operating mode Mission mode, altitude hold mode, GPS mode, landing mode Operating voltage 44.4V Battery type Li-Po Battery capacity 20000 mAh

Ferret

Ferret  Specifications            Operating Size
(Length * Width * Height) 475 x 545 x 105 mm Folded size 227 x 126 x 105 mm Wheelbase 435 mm Propeller size 8 inches Aircraft weight 990 g Flight time (outdoor hovering) 30 minutes Aircraft with 2K gimbal 1055 grams Flight time
(outdoor hovering with 2K gimbal) 27 minutes Maximum horizontal flight speed 15 m/s Maximum vertical flight speed 3 m/s Operating temperature -20℃~50℃ Wind resistance rating Level 5 Tilting angle 25° Operating mode Mission mode, altitude hold mode,
GPS mode, landing mode Operating voltage 16.8V Battery type Li-Po Battery capacity 5000 mAh

Owl

Owl  Specifications            Operating Size
(Length * Width * Height) 550 x 590 x 110 mm Folded size 395 x 155 x 110 mm Wheelbase 440 mm Propeller size 10 inches Aircraft weight 990 g Flight time (outdoor hovering) 35 minutes Aircraft with EO/IR gimbal 1100 grams Flight time
(outdoor hovering with EO/IR gimbal) 30 minutes Maximum horizontal flight speed 15 m/s Maximum vertical flight speed 3 m/s Operating temperature -20℃~50℃ Wind resistance rating Level 5 Tilting angle 25° Operating mode Mission mode, altitude hold mode,
GPS mode, landing mode Operating voltage 16.8V Battery type Li-Po Battery capacity 5000 mAh

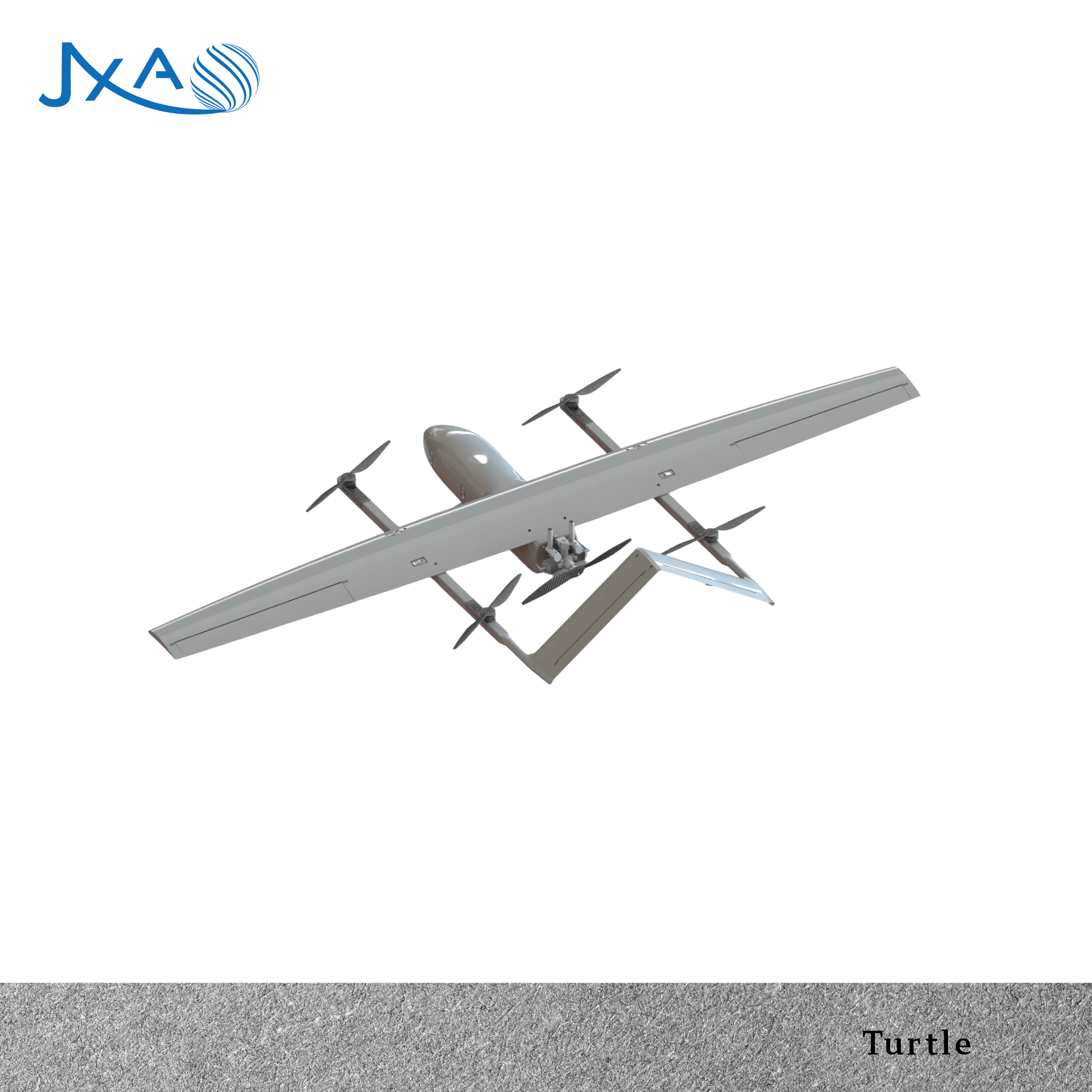

Turtle

Turtle Specifications Size
(Length * Width * Height)
2135 x 4020 x 575 mm  Wheelbase 1750 mm Propeller size Multi-spin 22 inches
Push-back 24 inches Aircraf weight 12 Kg Maximum takeoff weight 30 Kg Payload 9 KG Flight time 320 minutes Flight altitude 3000 meters Cruising speed 22-25 m/s Maximum range 480 kilometers Operating temperature 10℃~50℃ Wind resistance rating Multi-suspension mode: Level 4
Fixed-wing mode: Level 6 Operating mode Q_HOVER , Q_LOITER , FBWA , AUTO , RTL Operating voltage 44.4V Battery Type Li-Po Battery capacity 16000 mAh Fixed-wing power Unleaded gasoline + gasoline engine Fuel tank capacity 8 liters (About 6Kg)

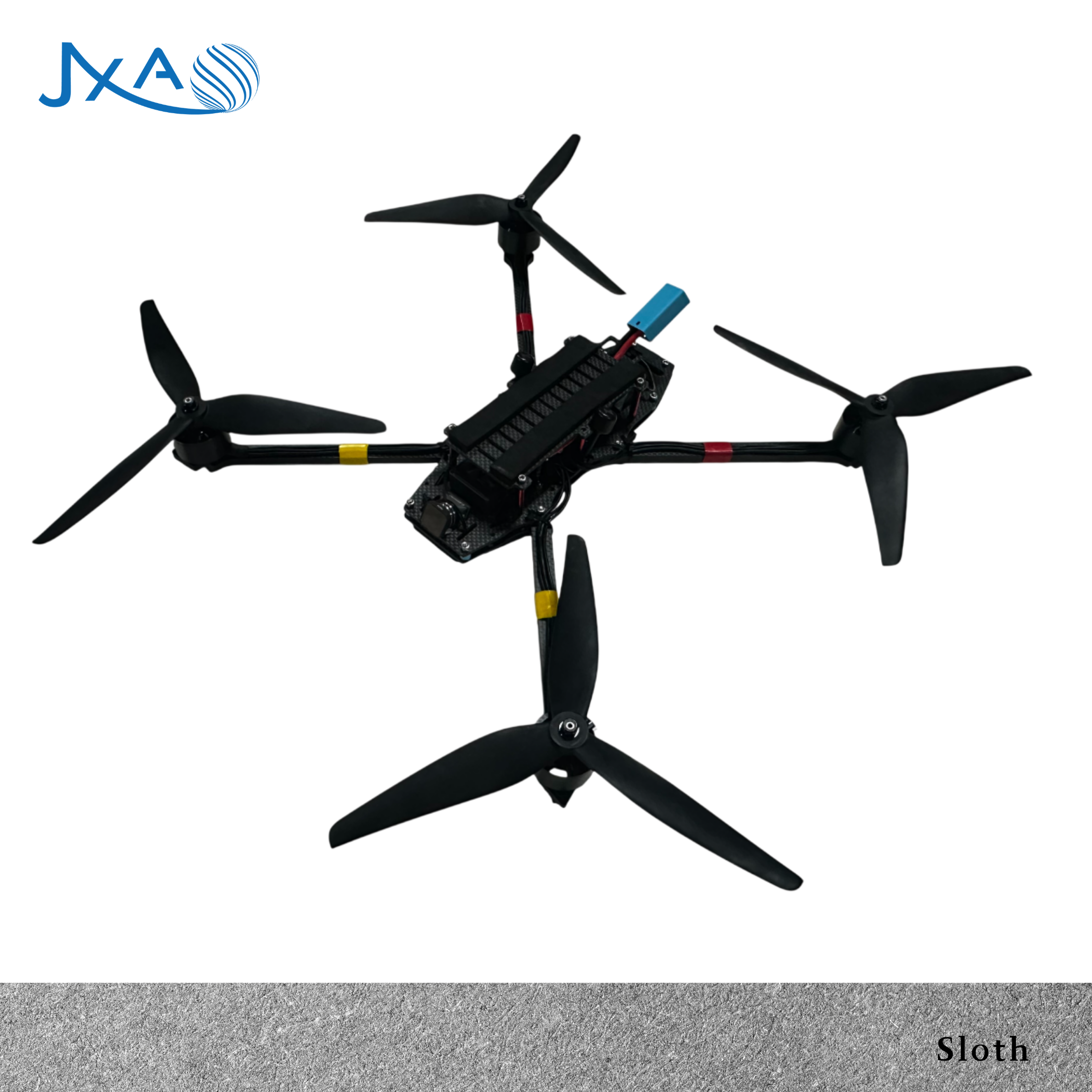

Sloth (10吋)

Sloth     Specifications Operating size
(Length * Width * Height) 560 x 560 x 65 mm Wheelbase 450 mm Propeller size 10 inches Aircraft weight 1.95 Kg Payload 2.55 Kg Maximum weight 4.5 Kg Flight time (outdorr hovering) 37 minutes Flight time (outdorr hovering with payload) 10 minutes Maximum horizontal flight speed 30 m/s Maximum vertical flight speed 8 m/s Operating ambient temperature -20 ℃ ~50 ℃ Wind resistance rating Level 5 Tilting angle 60° Operating mode Manual mode and Speciall mode Operating voltage 22.2V Battery type Li-Po Battery capacity 10000 mAh

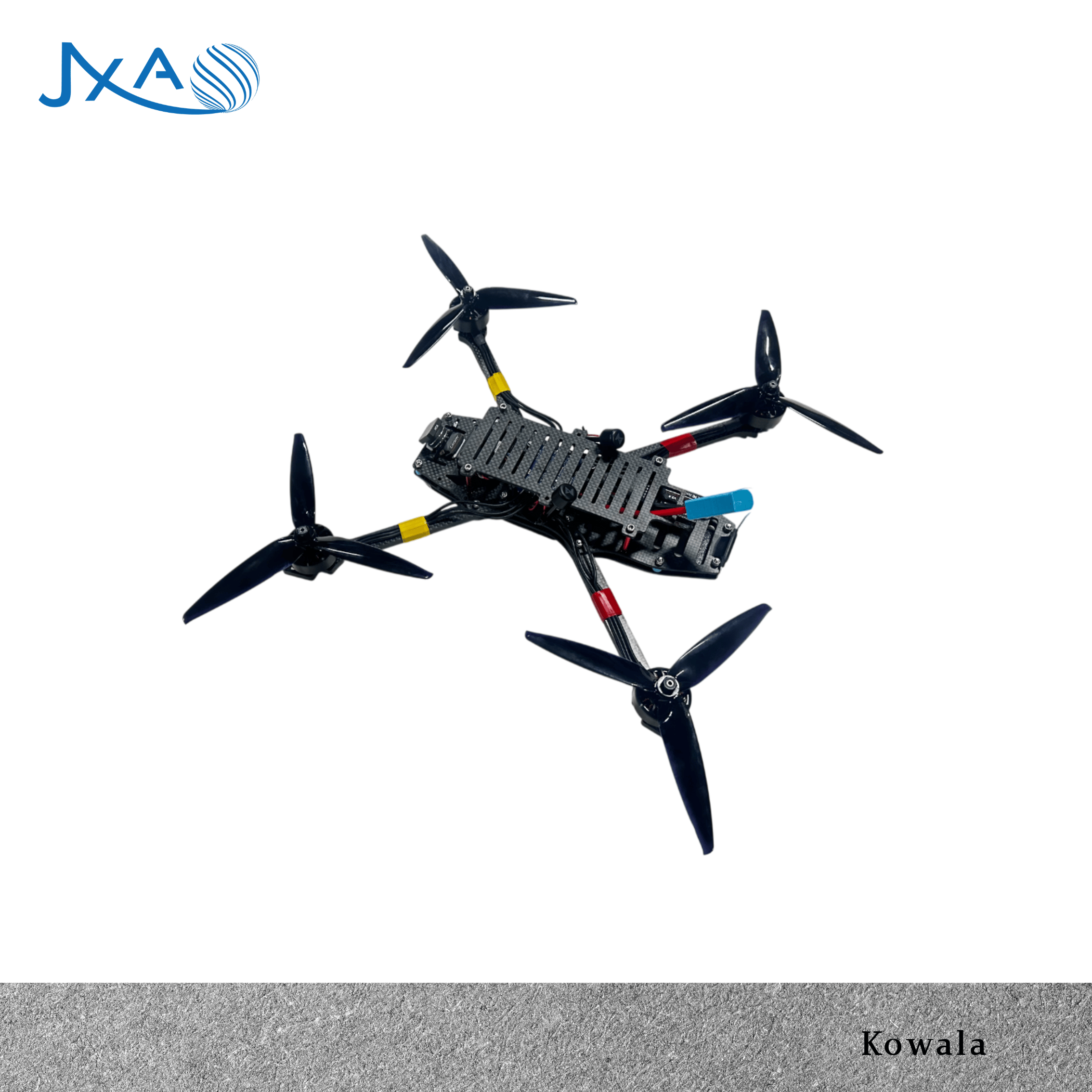

Koala (7吋)

Koala Specifications Operating size
(Length * Width * Height) 420 x 420 x 65 mm Wheelbase 350 mm Propeller size 7 inches Aircraft weight 1.5 Kg Payload 2.5 Kg Maximum weight 4 Kg Flight time (outdorr hovering) 32 minutes Flight time (outdorr hovering with payload) 8 minutes Maximum horizontal flight speed 30 m/s Maximum vertical flight speed 8 m/s Operating ambient temperature -20 ℃ ~50 ℃ Wind resistance rating Level 5 Tilting angle 60° Operating mode Manual mode and Speciall mode Operating voltage 22.2V Battery type Li-Po Battery capacity 10000 mAh

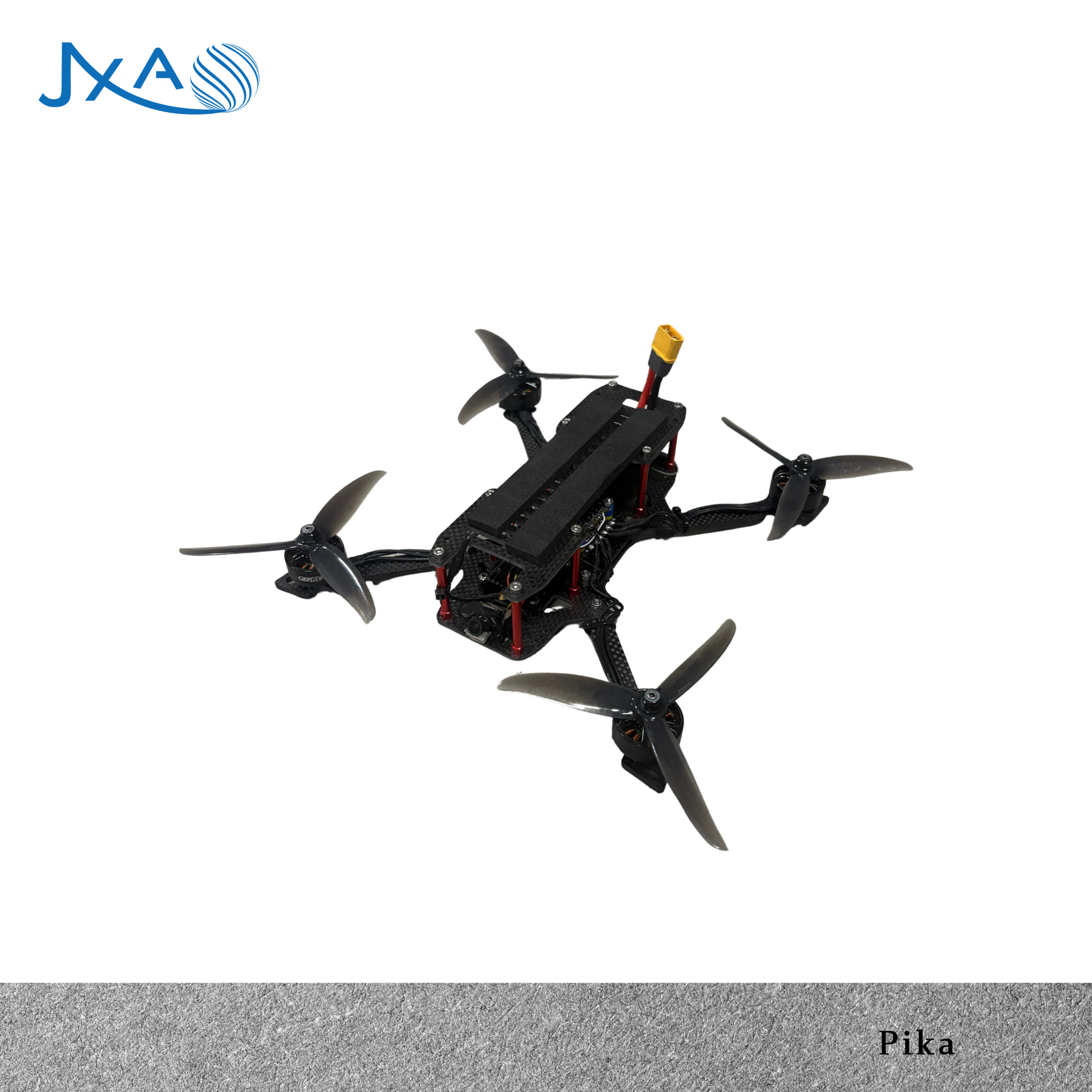

Pika (5吋)

Pika Specifications Operating size
(Length * Width * Height) 315 x 315 x 60 mm Wheelbase 270 mm Propeller size 5 inches Aircraft weight 900 g   300 g Maximum weight 1200 g Flight time (outdorr hovering) 24 minutes Flight time (outdorr hovering with payload) 16 minutes Maximum horizontal flight speed 25 m/s Maximum vertical flight speed 8 m/s Operating ambient temperature -20 ℃ ~50 ℃ Wind resistance rating Level 5 Tilting angle 60° Operating mode Manual mode and Speciall mode Operating voltage 22.2V Battery type Li-Po Battery capacity 5000 mAh

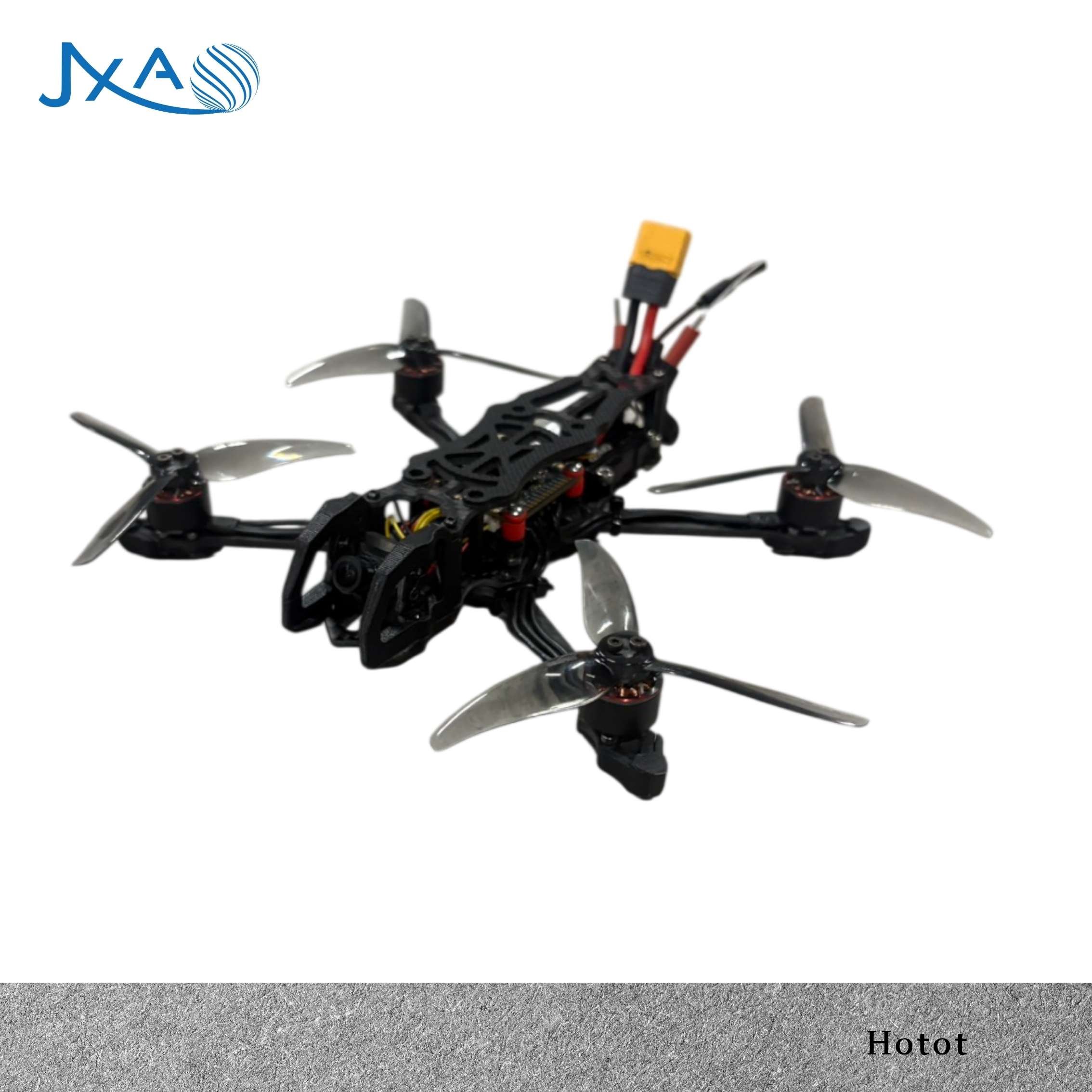

Hotot (4吋)

Hotot     Specifications Operating size
(Length * Width * Height) 210 x 210 x 35 mm Wheelbase 180 mm Propeller size 4 inches Aircraft weight 430 g Payload 150 g Maximum weight 600 g Flight time (outdorr hovering) 12 minutes Flight time (outdorr hovering with payload) 8 minutes Maximum horizontal flight speed 30 m/s Maximum vertical flight speed 10 m/s Operating ambient temperature -20 ℃ ~50 ℃ Wind resistance rating Level 5 Tilting angle 60° Operating mode Manual mode and Speciall mode Operating voltage 14.8V Battery type Li-Po Battery capacity 2200 mAh

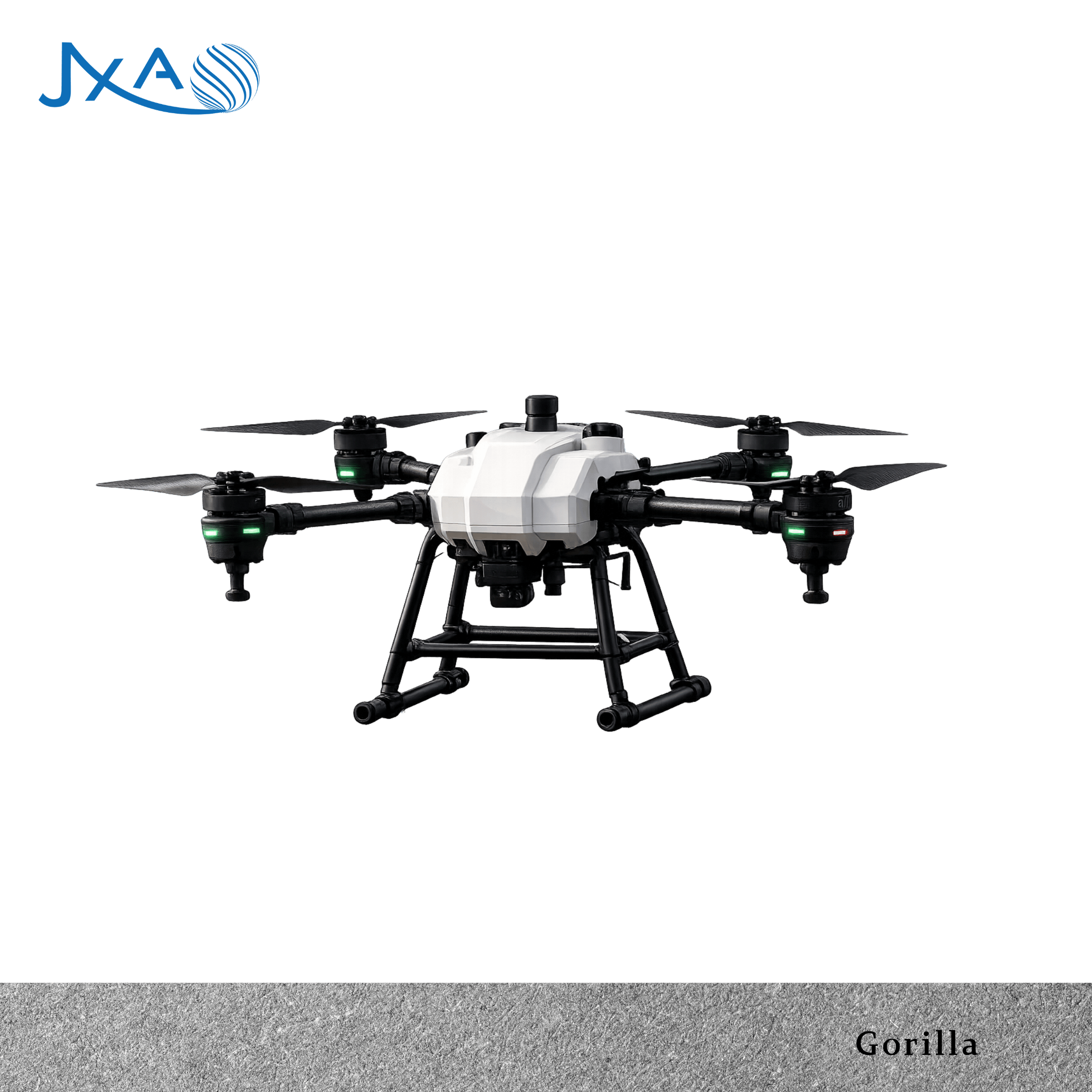

Gorilla

Gorilla Specifications Operating size
(Length * Width * Height) 1905 x 1720 x 815 mm Folded size 635 x 1340 x 815 mm Propeller size 56 inches Aircraft weight 49 Kg Flight time (outdorr hovering) 24 minutes Payload 50 Kg Maximum weight 99 Kg Flight time (outdorr hovering with payload) 7 minutes Maximum horizontal flight speed 10 m/s Maximum vertical flight speed 3 m/s Operating ambient temperature -20 ℃ ~50 ℃ Wind resistance rating Level 6 Tilting angle 15° Operating mode Manual mode and auto mode Operating voltage 75.6V Battery type Li-Po Maxinum flight attitude 3000 meters Battery capacity 10000 mAh

Hippo

Hippo Specifications Operating size 1900 x 1900 x 660 mm Folded size 1000 x 1000 x 660 mm wheelbase 1400 mm Propoller size 36 inches Aircraft weight 15 kg
Payload 21 Kg/20L Maxinum weight 41.5 Kg Flight time
(Full Loaded) 10 minutes Waterproof rating IP45 Maximum horizontal flight speed 10 m/s Maximum vertical flight speed 3 m/s Operating temperature -20℃~50℃ Wind resistance rating Level 5 Tilting angle 15° Operating mode Mission mode, altitude hold mode, GPS mode, landing mode Operating voltage 44.4V Battery Type Li-Po Battery capacity 20000 mAh

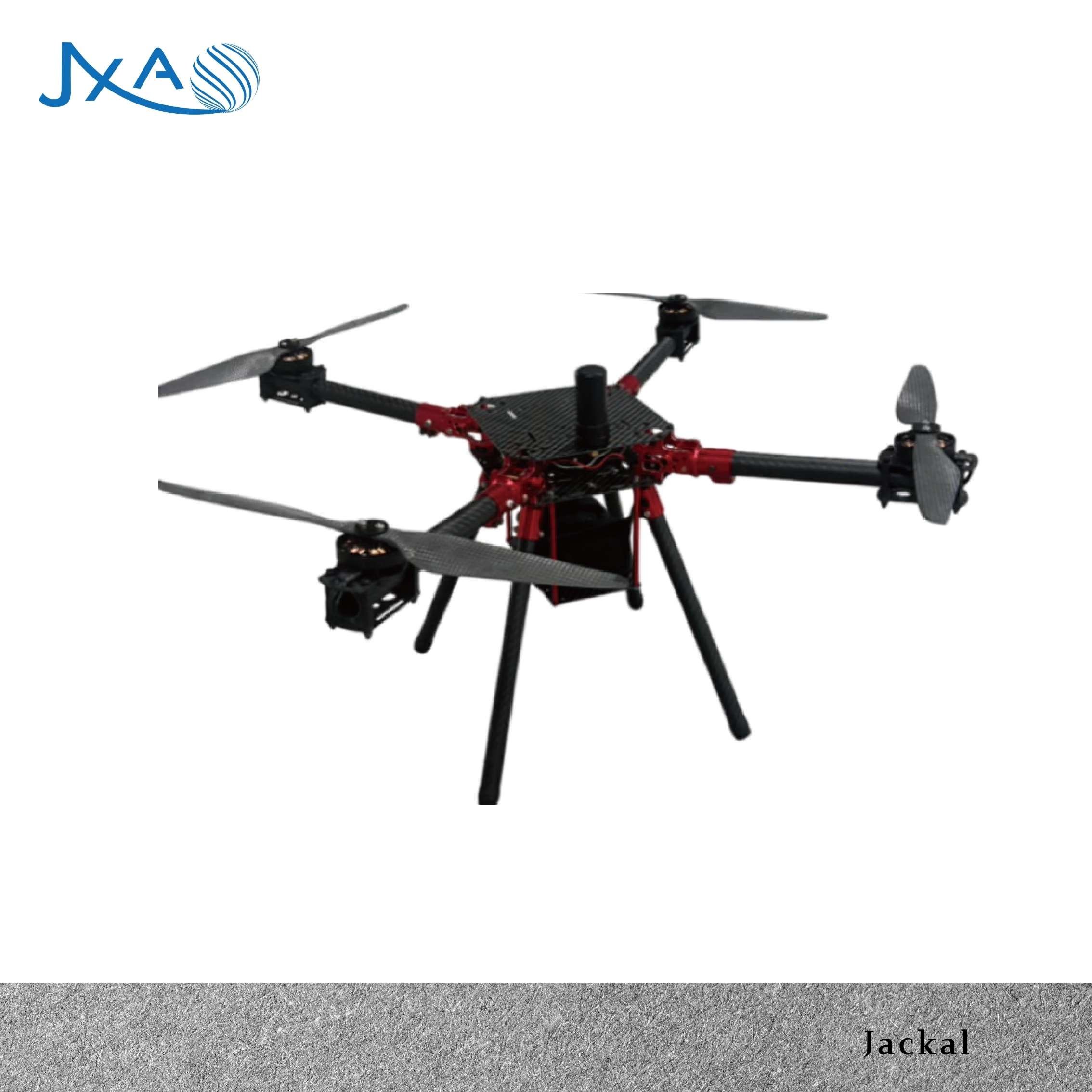

Jackal

JAckal Specifications Operating size
( Length * Width * Height )
600 x 600 x 315 mm
Folded size 300 x 300 x 315 mm Wheelbase 550 mm Propeller size 13 inches Aircraft weight 2150g Payload 600g Maxinum weight 2750 grams Flighting time (outdoor hovering ) 25 minutes Maximum horizontal flight speed 15 m/s Maximum vertical flight speed 3 m/s Operating temperature -20℃~50℃ Wind resistance rating Level 5 Tilting angle 20° Operating mode Mission mode, Altitude hold mode, GPS mode, landing mode Battery Type Li-Po Battery capacity 10000 mAh

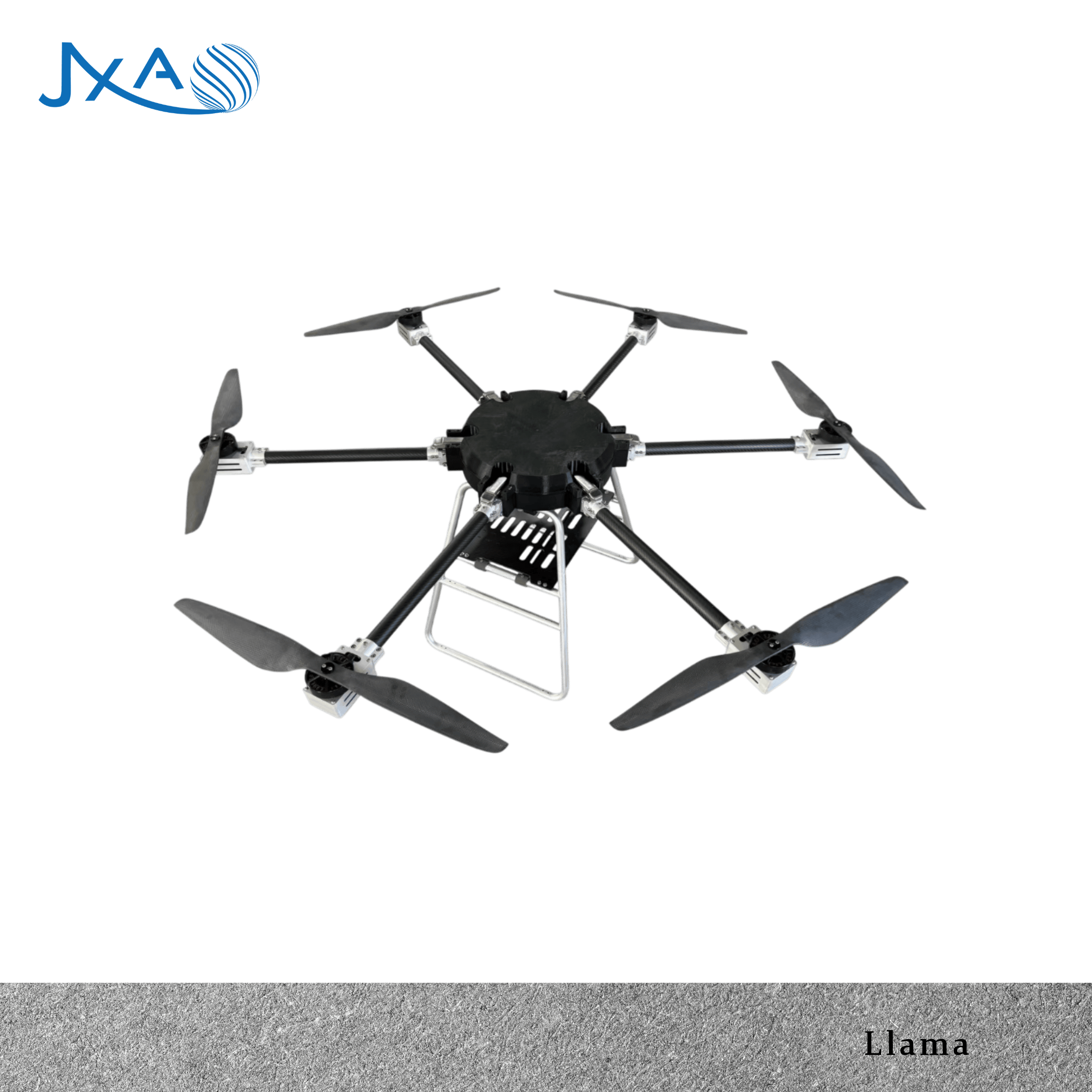

Llama

Llama Specifications Operating size
( Length * Width * Height )
1850 x 2012 x 680 mm
Folded size 600 x 620 x 680 mm Wheelbase 1400 mm Propeller size 24 inches Aircraft weight 16 Kg Payload 5 Kg Maxinum weight 21 Kg Flighting time (outdoor hovering ) 30 minutes Flighting time (outdoor hovering with payload ) 20 minutes Maximum horizontal flight speed 15 m/s Maximum vertical flight speed 3 m/s Operating temperature -20℃~50℃ Wind resistance rating Level 5 Tilting angle 25° Operating mode Mission mode, Altitude hold mode, GPS mode, landing mode Operating voltage 44.4 V Battery Type Li-Po Battery capacity 50000 mAh

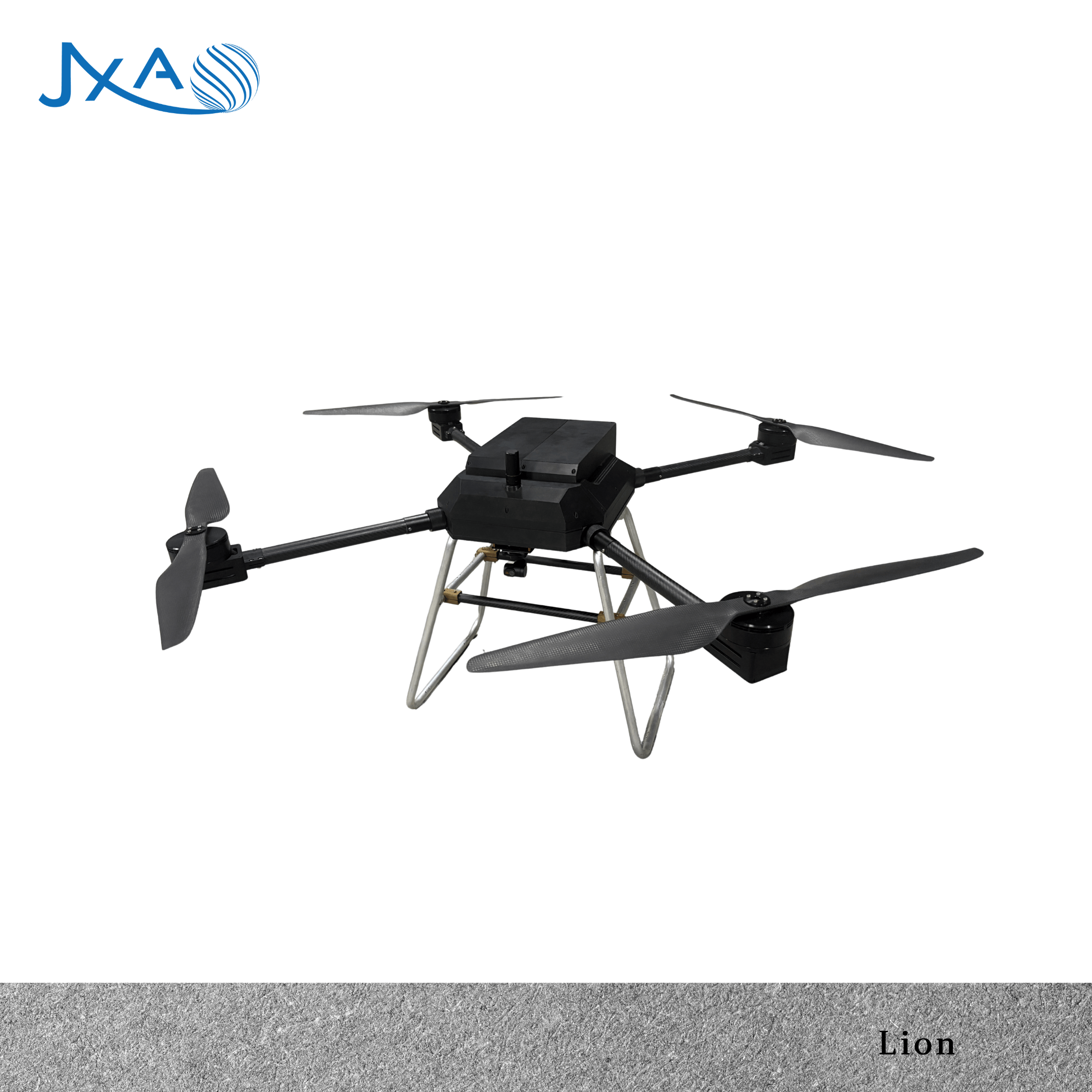

Lion

Lion Specifications Operating size
( Length * Width * Height )
1618 x 1618 x 615 mm
Folded size 620 x 630 x 615 mm Wheelbase 1245 mm Propeller size 29 inches Aircraft weight 13 Kg Payload 12 Kg Maxinum weight 25 Kg Flighting time (outdoor hovering ) 40 minutes Flighting time (outdoor hovering with payload ) 13 minutes Maximum horizontal flight speed 12 m/s Maximum vertical flight speed 3 m/s Operating temperature -20℃~50℃ Wind resistance rating Level 5 Tilting angle 25° Operating mode Mission mode, Altitude hold mode, GPS mode, landing mode Operating voltage 44.4 V Battery Type Li-Po Battery capacity 50000 mAh

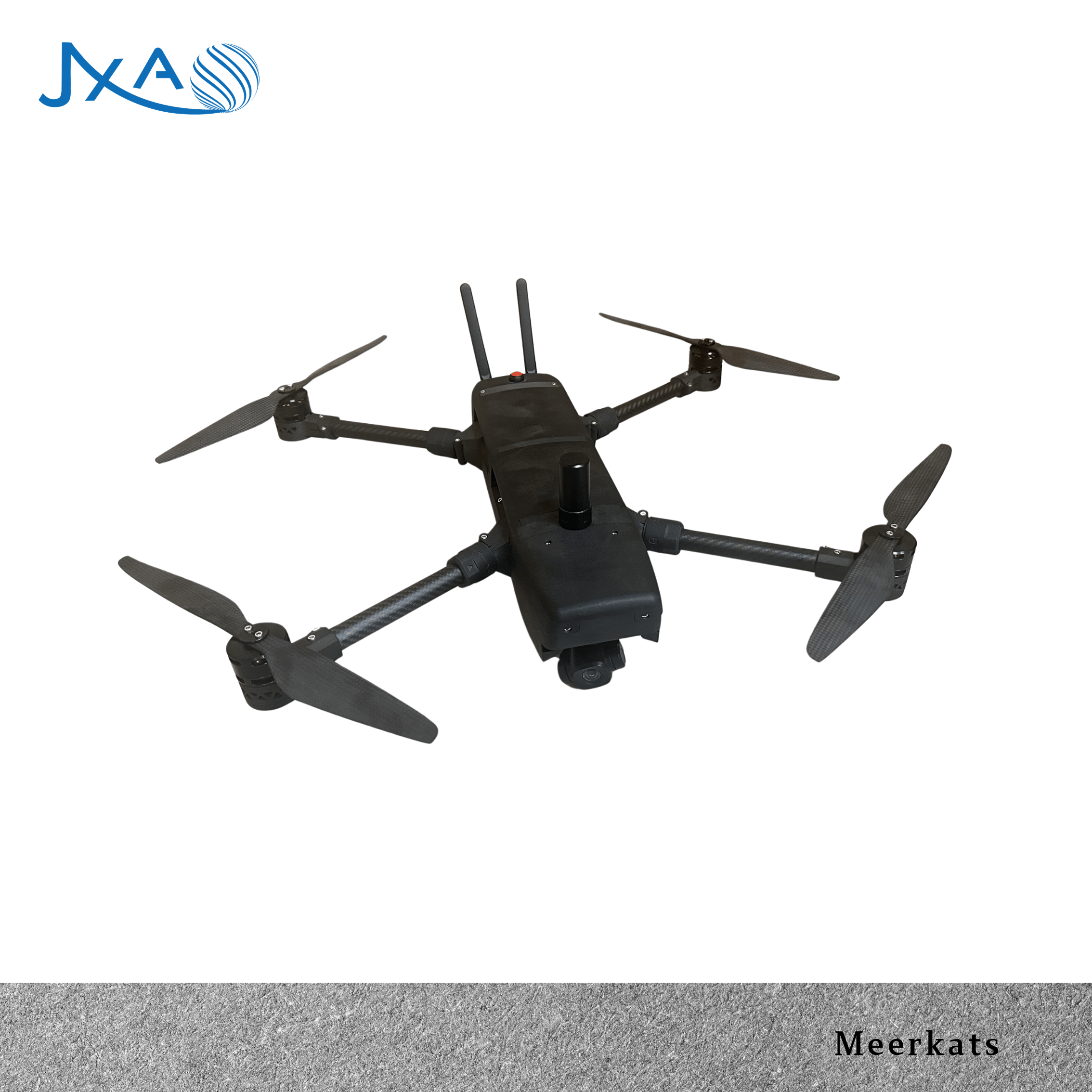

Meerkat

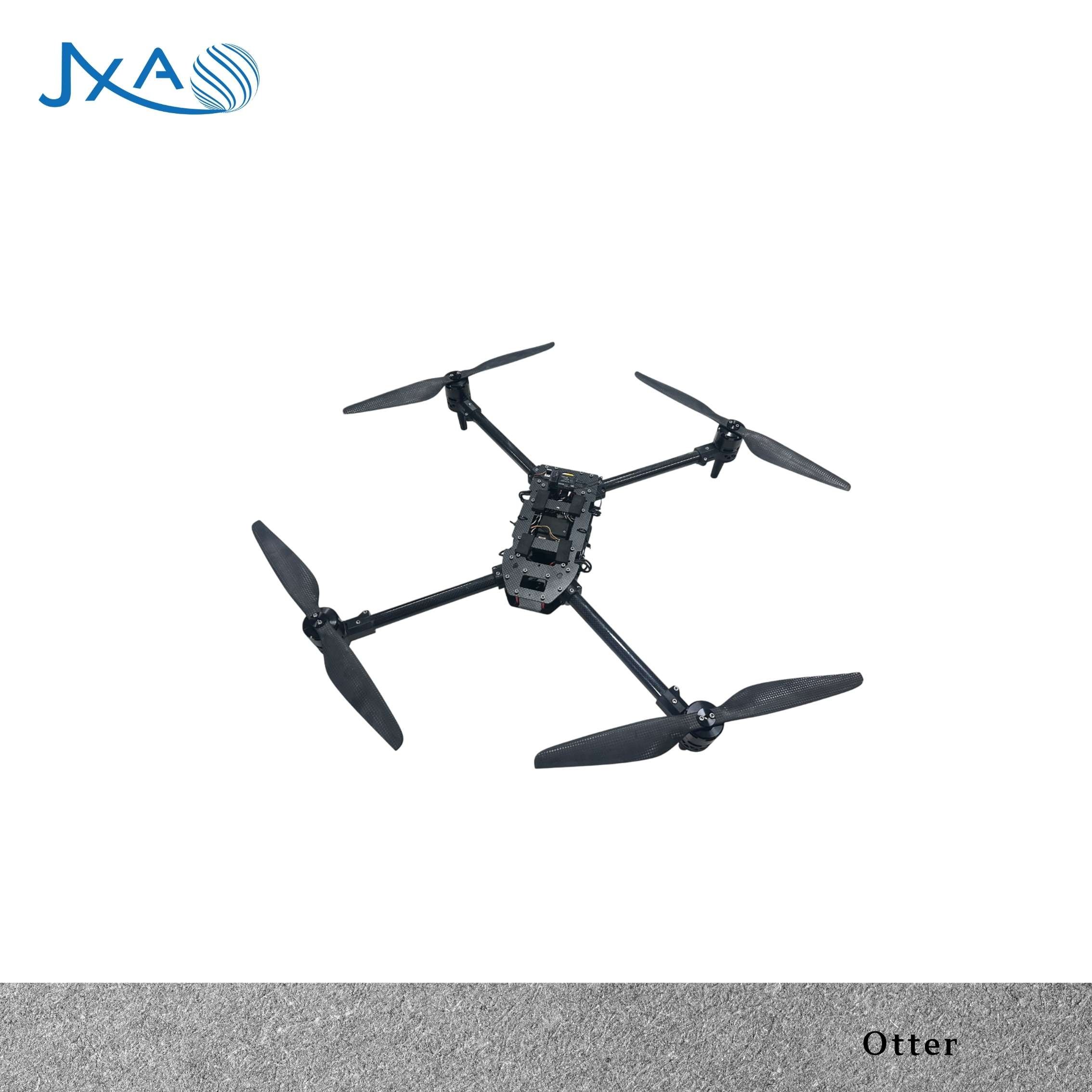

Otter

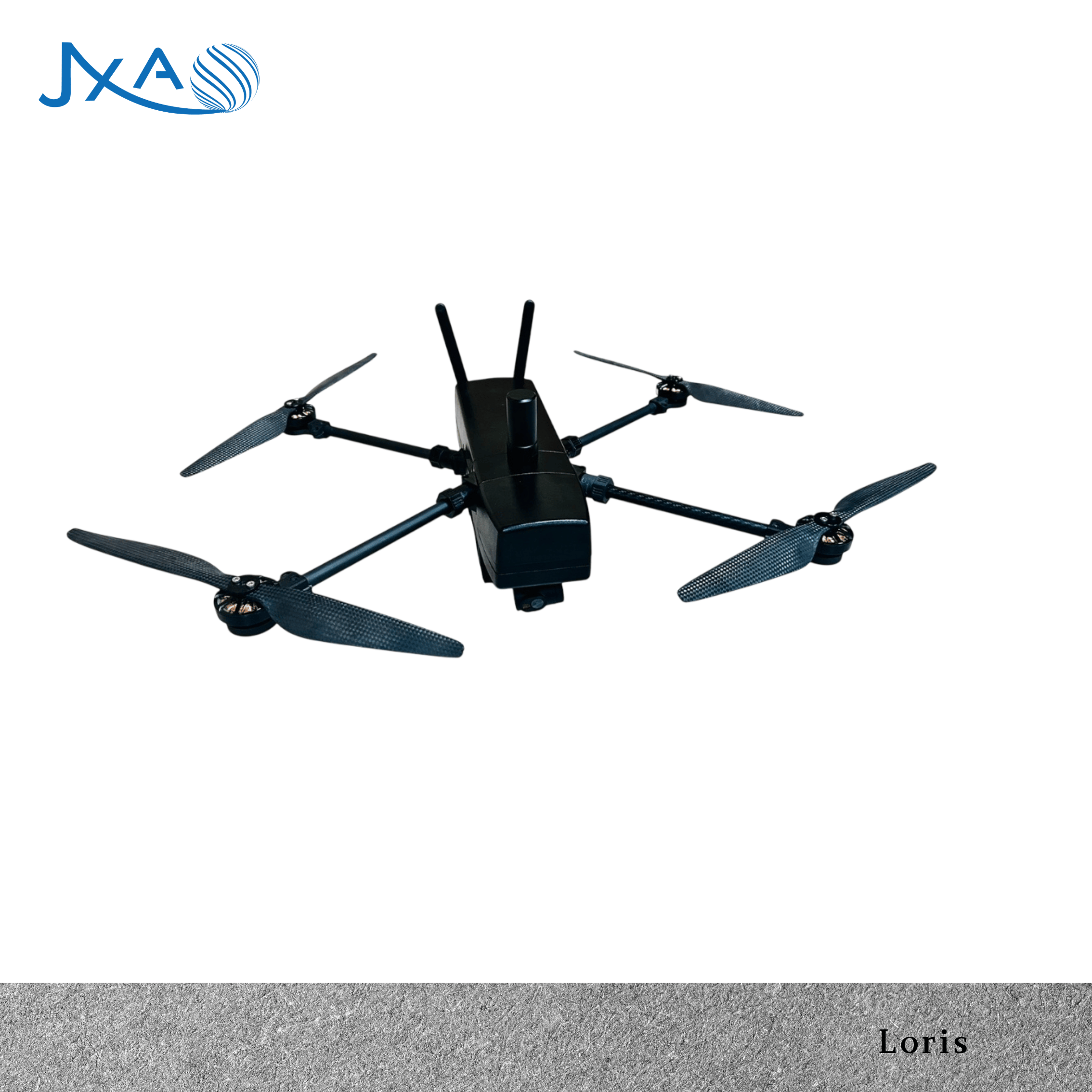

Loris

Lorisw Specifications Operating size
( Length * Width * Height )
680 x 765 x 130mm
Folded size 575 x 180 x 130mm Wheelbase 550 mm Propeller size 13 inches Aircraft weight 2 Kg Payload 500 g Maxinum weight 2.5 Kg Flighting time (outdoor hovering ) 31 minutes Flighting time (outdoor hovering with payload ) 22 minutes Maximum horizontal flight speed 15 m/s Maximum vertical flight speed 3 m/s Operating temperature -20℃~50℃ Wind resistance rating Level 5 Tilting angle 30° Operating mode Mission mode, Altitude hold mode, GPS mode, landing mode Operating voltage 16.8 V Battery Type Li-Po Battery capacity 10000 mAh
